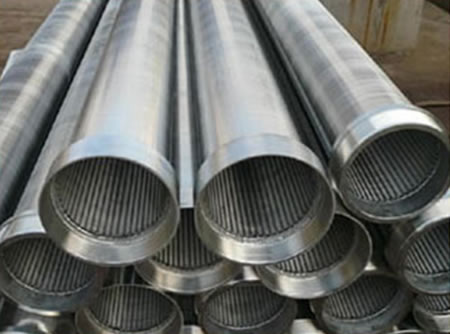

Water Filtration Pipes

Water filter tube is made with the support rod and the V-shaped wound wires. Each cross-point is connected with welding. It has solid structure, good mechanical properties. V-shaped cross-section can avoid clogging, while ensuring water flow. Continuous gap enables greater water area, while reducing groundwater infiltration rate, to avoid pressure in the larger sand into the tube. The gap can be changed according to different geological situation.
Water filtration pipes can be made according to customer needs used for a centrifuge or similar machines.

More Technical Details:

V Wire Filtration Pipes for Water Treatment

The filter can be designed to be installed on the existing spacer frame, the whole can be made in the form of the support structure. Water filter tube can be used for pulp and paper, and mineral processing, it must be particularly hard against the high centrifugal forces and high temperatures are required to have a special abrasion resistance. Water filter tube can also be used for sugar processing.

Specification of Water Treatment Tubing:

Width Heigth Section Angle
IN MM IN MM IN2 MM2 RELIEF ANGLE
0.020 0.508 0.040 1.016 0.0005 0.323 11
0.030 0.762 0.050 1.270 0.001 0.645 13
0.047 1.194 0.088 2.235 0.003 1.935 10
0.060 1.524 0.100 2.540 0.004 2.581 13
0.071 1.803 0.177 4.496 0.010 6.452 7
0.089 2.261 0.138 3.505 0.009 5.806 13
0.116 2.946 0.185 4.699 0.015 9.677 13
0.130 3.302 0.250 6.350 0.023 14.839 8
0.158 4.013 0.239 6.070 0.028 17.94 8
0.195 4.953 0.363 9.220 0.055 35.484 5
