Steel Grade of Perforated Tubes

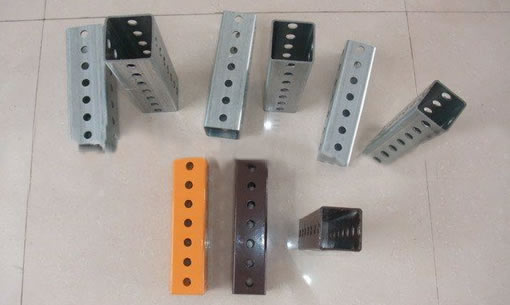

Perforated metal tubes are supplied in the form of round tube or square tubes. The punched holes can also be round, square, slot, decorative and etc. Popular material for perforated tubes are carbon steel.

More Technical Details:

Perforated rectangular and square steel tube:
Steel Grade:Q195 Q215 Q235B Q345
Size:15*15mm-400*400mm 15*30mm-300*500mm
W.T:0.8-18mm

Steel grade chemical composition
C Mn Si S P Cr
Q195 0.06~0.12 0.25~0.50 ≤0.30 ≤0.050 ≤0.045 ___
Q235 0.12~0.20 0.30~0.70 ≤0.30 ≤0.045 ≤0.045 ___
Q345 ≤0.20 1.00~1.60 ≤0.55 ≤0.40 ≤0.040 ___
Steel grade chemical composition
C Mn Si S P
Q195 0.06~0.12 0.25~0.50 ≤0.30 ≤0.050 ≤0.045
Q235 0.12~0.20 0.30~0.70 ≤0.30 ≤0.045 ≤0.045
Q345 ≤0.20 1.00~1.60 ≤0.55 ≤0.40 ≤0.040

Perforated Metal into Round Pipes

Punched Metal Processed Square Tubes
