Perforated tubes are widely used as filter screen parts and components. It is used as base pipe or supporting tubes in particle filtration. Our newly developed perforated PVC tubes are becoming popular in industries nowadays.
Standard Dimensions of Perforated PVC Tubes:
| OD(mm) | Wall Thickness(mm) | Length(m) |
| 20 | 2.0-2.3 | 1m-11.6m |
| 25 | 2.0-2.8 | 1m-11.6m |
| 32 | 2.0-3.6 | 1m-11.6m |
| 40 | 2.0-4.5 | 1m-11.6m |
| 50 | 2.0-5.6 | 1m-11.6m |
| 63 | 2.0-7.1 | 1m-11.6m |
| 75 | 2.3-8.4 | 1m-11.6m |
| 90 | 2.8-10.1 | 1m-11.6m |
| 110 | 2.7-10.0 | 1m-11.6m |
| 125 | 3.1-11.4 | 1m-11.6m |
| 140 | 3.5-12.7 | 1m-11.6m |
| 160 | 4.0-14.6 | 1m-11.6m |
| 180 | 4.4-16.4 | 1m-11.6m |
| 200 | 4.9-18.2 | 1m-11.6m |
| 250 | 5.5-16.6 | 1m-11.6m |
| 280 | 6.2-18.4 | 1m-11.6m |
| 315 | 6.9-20.6 | 1m-11.6m |
Note: Generally the color of the pipe is white. Other size, lengths and colors of the PVC pipe can be made to meet client's request.

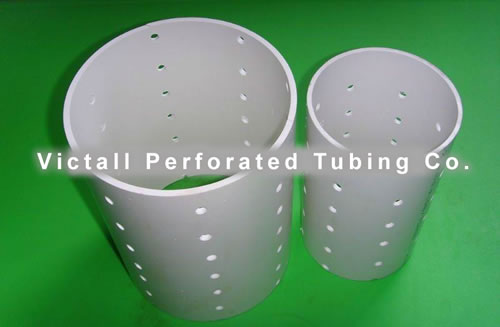

Perforated Pipe, PVC or HDPE pipe, with array perforated round holes.
used as water filter pipe, or sprinkler irrigation pipe
It adopts 100% PVC resin or HDPE as major raw material, with small holes on wall. General colour is white, or agree with customers need.
Applications:
Used in underground cable pipe protective, inner duct communication pipe protective, water drainage or water supply pipe protective or sprinkler irrigation pipe.
Remarks: The density of perforated holes can be made according to customer's need.
